IRT UV SmartCure

Outstanding UV LED curing performance with exchangeable batteries.
IRT UV SmartCure weighs just above 1 kg and cures 80 spot repairs on one charge

Download product flyer

UV LED curing with SmartCure from IRT

A UV-LED REVOLUTION

SmartCure is equipped with the latest UV-LED high quality technology for UV-filler and primer. Monitored to keep light performance on a constant high level throughout the complete battery cycle. Cures an area of Ø 16 cm in just 10 seconds. Replace the battery with a click.

EFFICIENCY IN EVERY DETAIL

Advanced electronics guarantee the highest possible performance from battery, UV-LED module and cooling system. Experience zero power loss even with an almost empty battery. Safety features such as auto shutdown if electronics or UV-LED are overheated. The cooling system activates on demand.

ERGONOMIC DESIGN

IRT UV SmartCure is compact with an ergonomic trigger switch grip and comfortable hardwearing handle design.
Twin battery pack, charger, magnetic wall bracket and UV safety eye wear is included.

Specially developed UVA-LED, optimized to fully and securely cure 395 nm/365 nm coatings.
2 Superior LED-module, completely customized for IRT UV SmartCure. Completely sealed to avoid dust and dirt that could decrease light performance.
3 Safety glass, 3 mm scratch and solvent resistant tempered glass with glass fiber reinforced frame to prevent glass from breaking. Protects the UV-LED’s.
4 Skived fin heat sink to get best possible heat management.
5 Ergonomic grip with precise trigger switch.
6 High performance 18V Lithium-ion rechargeable battery.

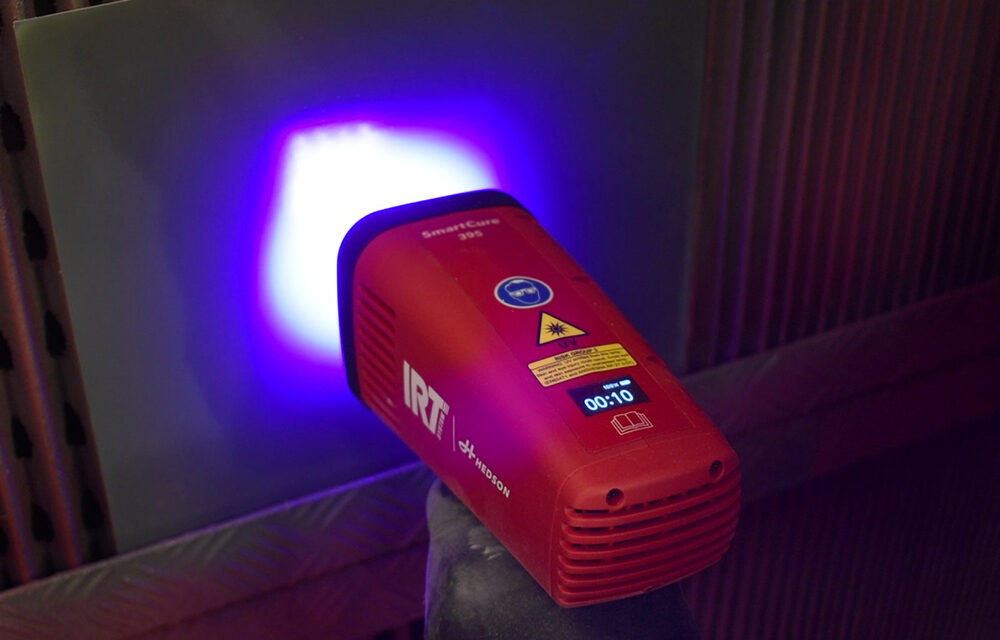

7 Display with timer, battery level and other useful functions.
8 Powerful fan to get maximum cooling.
9 Advanced electronics with amplifier and inductor for high-efficiency DC/DC converters which makes it possible to get a higher curing effect.
10 Flame resistant plastic shell reinforced with 25 % glass
fiber to withstand high impact.
11 Temperature sensors to guarantee that neither the electronics or LEDS’s can be overheated.

IRT UV SmartCure
by Hedson

IRT UV SmartCure
Operational safety in every detail is IRT top priority. SmartCure comes with exchangeable, high quality, long life 18 V lithium-ion batteries. Peak light performance is maintained on a constant high level until the display indicates battery change, no risk of power loss due to discharged battery. The battery charger is hardwearing and reliable. It holds charge over time without risk of overcharging.

Excellent curing result in seconds
No risk of power loss or over charging
Exchangeable batteries eliminate down-time
Peak light performance held at max throughout battery cycle

*SmartCure 395 nm alternatives:	*SmartCure 365 nm alternatives:
EU; in cardboard box 715070-1 / EU; in hard case 715070-2	EU; in cardboard box 715365-1 / EU; in hard case 715365-2
NA; in cardboard box 715070-3 / NA; in hard case 715070-4	NA; in cardboard box 715365-3 / NA; in hard case 715365-4
UK; in cardboard box 715070-5 / UK; in hard case 715070-6	UK; in cardboard box 715365-5 / UK; in hard case 715365-6
JP; in cardboard box 715070-7 / JP; in hard case 715070-8	JP; in cardboard box 715365-7 / JP; in hard case 715365-8
AUS; in cardboard box 715070-9 / AUS; in hard case 715070-10	AUS; in cardboard box 715365-9 / AUS; in hard case 715365-10

IRT UV SmartCure	Part no. 715070-X* (395nm) / Part no. 715365-X* (365nm)
Hard case	Art nr. 800806
Dust cover	Art nr. 715193
Filter	Art nr. 715074
Voltage	SmartCure 18 VDC, Battery 18 VDC, Charger 100-240 VAC
Frequency	50-60 Hz
Current	SmartCure 8 A, Charger 2 A
Power	200 W
Noise level	<60 dB (A)
Weight (including battery)	1,16 kg
Wavelength (peak)	395 nm: Art no. 715070-X, 365 nm: Art no. 715365-X
Dimensions	189/250/88 mm
Degree of protection	IP X4
Risk Group EN62471	3 (RG-3)
Included in delivery	2 batteries, charger, magnetic wall bracket, UV Safety glasses
